USF4BH96V2

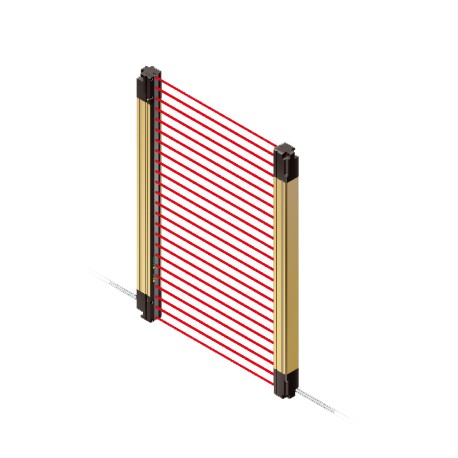

USF4BH96V2 SF4B-H96(V2) PANASONIC Safety light curtain type 4, version 2, hand protection 1910mm, PNP/NPN, c..
$0.00USD
4688 in magazzino
Specifiche chiave
Articolo:Specifications
PFHD:6.0 × 10–9
MTTFD:100 years or more
Dettagli:Min. sensing object ø25 mmø0.984 intype (20 mm0.787 inbeam pitch)
Informazioni fornitore
PANASONIC
Prodotti: 4316
Di solito spedito entro 2-3 giorni lavorativi
Qualità garantita
Spedizione veloce
Supporto tecnico
Specifiche tecniche
| Parametro | Valore |
|---|---|
| Articolo | Specifications |
| PFHD | 6.0 × 10–9 |
| MTTFD | 100 years or more |
| Dettagli | Min. sensing object ø25 mmø0.984 intype (20 mm0.787 inbeam pitch) |
| Prodotto | Safety Light Curtain Type 4 |
| Materiale | Enclosure: AluminiumUpper and lower edges: IronSensing surface: Polycarbonate / Polyester resinCap: PBT |
| Accessori | MS-SFB-2 (Intermediate supporting bracket): 3 setsSF4B-TR25 (Test rod): 1 No |
| Numero di parte | SF4B-H96(V2) |
| Lunghezza del cavo | Total length up to 50 m164.042 ftis possible for both emitter and receiver, with optional mating cables(Note) The cable can be extended within 30 m98.425 ft(for emitter / receiver) when two light curtains are connected in series, within 20 m65.617 ftwhen three light curtains are connected in series. Furthermore, when the muting lamp is used, the cable can be extended within 40 m131.234 ft(for emitter / receiver). |
| Nome del prodotto | Safety Light Curtain Type 4 SF4B Ver.2(Discontinued) |
| Tensione di alimentazione | 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Tempo di risposta | OFF response: 14 ms or less, ON response: 80 to 90 ms |
| Numero di prodotto | SF4B-H96(V2) |
| Funzione di disattivazione audio | Incorporated(Note) Please use 12-core cable. |
| Gamma operativa | 0.3 to 7 m0.984 to 22.966 ft(Note) The operating range is the possible setting distance between the emitter and the receiver. |
| Elemento emittente | Infrared LED (Peak emission wavelength: 870 nm0.034 mil) |
| Metodo di collegamento | Connector |
| Funzione di override | Incorporated(Note) Please use 12-core cable. |
| Altezza di protezione | 1,910 mm75.197 in(Note:In the case of "When used as safety device for presses in China", the distance between the center of the first beam axis and the center of the last beam axis of the device becomes the protective height. For details, refer to "Definition of sensing heights".) |
| Funzione di interblocco | Incorporated [Manual reset / Auto reset (Note)](Note) The manual reset and auto reset are possible to be switched depending on the wiring status. |
| Funzioni opzionali | Fixed blanking, floating blanking, auxiliary output switching, interlock setting changing, external relay monitor setting changing, muting setting changing, protecting, light emitting amount control(Note) In case of using optional function, the handy-controller (SFB-HC) (optional) is required. However, a handy-controller cannot be used with the SF4B-x-01<V2> and the SF-C14EX-01. |
| Illuminazione ambientale | Incandescent light: 3,500 lx or less at the light-receiving face |
| Consumo attuale | Emitter: 120 mA or lessReceiver: 200 mA or less |
| Oggetto di rilevamento minimo | ø25 mmø0.984 inopaque object(Note) When the floating blanking function is used, the size of the min. sensing object is changed. |
| Numero di canali del fascio | 96 |
| Funzione di arresto delle emissioni | Incorporated |
| Angolo di apertura effettivo | plus or minus 2.5°or less [for an operating range exceeding 3 m9.843 ft(conforming to IEC 61496-2 / ANSI/UL 61496-2)] |
| Norme applicabili: Cina | GB/T 4584(Note) PLe SIL3 compliant from production in August 2009. |
| Norme applicabili: Giappone | JIS B 9704-1/2 (Type 4), JIS B 9705-1 (Category 4), JIS C 0508-1 to 7 (SIL3)(Note) PLe SIL3 compliant from production in August 2009. |
| Norme applicabili: Europa | EN 61496-1 (Type 4), EN ISO 13849-1 (Category 4, PLe), EN 61508-1 to 7 (SIL3), EN 55011, EN 50178, EN 61000-6-2(Note) PLe SIL3 compliant from production in August 2009. |
| Conformità alla direttiva sulla marcatura CE | Machinery Directive, EMC Directive, RoHS Directive |
| Uscite di controllo (OSSD 1, OSSD 2) | PNP open-collector transistor / NPN open-collector transistor (switching method)- When selecting PNP output: Max. source current 200 mA, When selecting NPN output: Max. sink current 200 mA- Applied voltage: same as supply voltage (When selecting PNP output: between the control output and +V, When selecting NPN output: between the control output and 0 V)- Residual voltage: 2.5V or less (When selecting PNP output: source current 200 mA, when selecting NPN output: sink current 200 mA) (when using 20 m65.617 ftlength cable) |
| Funzione di prevenzione delle interferenze | Incorporated(Note) Please use 12-core cable. |
| Norme applicabili: Nord America | ANSI/UL 61496-1/2 (Type 4), ANSI/UL 508, UL 1998 (Class 2), CAN/CSA 61496-1/2 (Type 4), CAN/CSA C22.2 No.14, OSHA 1910.212, OSHA 1910.217(C), ANSI B11.1 to B11.19, ANSI/RIA 15.06(Note) PLe SIL3 compliant from production in August 2009. |
| Funzione di monitoraggio del dispositivo esterno | Incorporated |
| Uscita ausiliaria (uscita non di sicurezza) | PNP open-collector transistor / NPN open-collector transistor (switching method)- When selecting PNP output: Max. source current 60 mA, When selecting NPN output: Max. sink current 60 mA- Applied voltage: same as supply voltage (When selecting PNP output: between the auxiliary output and +V, When selecting NPN output: between the auxiliary output and 0 V)- Residual voltage: 2.5V or less (When selecting PNP output: source current 60 mA, when selecting NPN output: sink current 60 mA) (when using 20 m65.617 ftlength cable) |
| Peso (totale dell'emettitore e del ricevitore) | 3,670 g approx. |
| Norme applicabili: Corea del Sud (marchio S) | S1-G-35-2005, S2-W-11-2003(Note) PLe SIL3 compliant from production in August 2009. |
| Resistenza ambientale: umidità ambientale | 30 to 85 % RH, Storage: 30 to 95 % RH |
| Resistenza ambientale: resistenza agli urti | 300 m/s2acceleration (30 G approx.) in X, Y and Z directions three times each |
| Norme applicabili: Norma internazionale | IEC 61496-1/2 (Type 4), ISO 13849-1 (Category 4, PLe), IEC 61508-1 to 7 (SIL3)(Note) PLe SIL3 compliant from production in August 2009. |
| Resistenza ambientale: temperatura ambiente | -10 to +55 °+14 to +131 ℉(No dew condensation or icing allowed), Storage: -25 to +70 °-13 to +158 ℉ |
| Resistenza ambientale: Grado di protezione | IP67 / IP65 (IEC) |
| Resistenza ambientale: resistenza alle vibrazioni | 10 to 55 Hz frequency, 0.75 mm0.030 indouble amplitude in X, Y and Z directions for two hours each |
| Resistenza ambientale: Resistenza di isolamento | 20 MOhm , or more, with 500 V DC megger between all supply terminals connected together and enclosure |
| Uscite di controllo (OSSD 1, OSSD 2): Modalità di funzionamento | ON when all beam channels are received, OFF when one or more beam channels are interrupted (OFF also in case of any malfunction in the safety light curtain or the synchronization signal)(Note) The outputs are not ''OFF'' when muting function is active even if the beam channel is interruped.(Note) In case the blanking function is valid, the operation mode is changed. |
| Uscite di controllo (OSSD1, OSSD2): Circuito di protezione | Incorporated |
| Resistenza ambientale: Sopportabilità della tensione | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Uscita ausiliaria (uscita non di sicurezza): tempo di risposta | OFF replay: 34 ms or less, ON replay 110 ms or less |
| Uscita ausiliaria (uscita non di sicurezza): modalità di funzionamento | OFF when control outputs are ON, ON when control outputs are OFF (Factory setting; operating mode can be changed using the SFB-HC handy-controller(optional)). |
| Altezza di protezione: conforme alla normativa China Press (GB/T 4584) | 1,900mm74.803 in |
| Uscita ausiliaria (uscita non di sicurezza): circuito di protezione | Incorporated |
