Disponibile Prodotto più richiesto
UPMR45C3

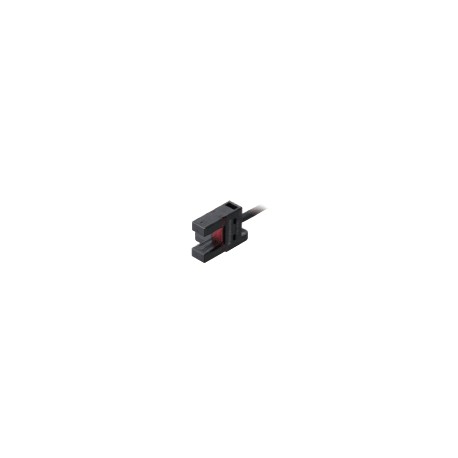

UPMR45C3 PM-R45-C3 PANASONIC u-shape type, R-shape, 6mm, NPN, cable 3m
$0.00USD
4171 in magazzino
Specifiche chiave
Articolo:Specifications
Cavo:0.09-mm24-core cabtyre cable, PVC, 3 m9.843 ftlong
Produzione:NPN open-collector transistor・Maximum sink current: 50 mA・Applied voltage: 30 V DC or less (between output and 0 V)・Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current)
Osservazione:Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃+73.4 ℉.
Informazioni fornitore
PANASONIC
Prodotti: 4316
Di solito spedito entro 2-3 giorni lavorativi
Qualità garantita
Spedizione veloce
Supporto tecnico
Specifiche tecniche
| Parametro | Valore |
|---|---|
| Articolo | Specifications |
| Cavo | 0.09-mm24-core cabtyre cable, PVC, 3 m9.843 ftlong |
| Produzione | NPN open-collector transistor・Maximum sink current: 50 mA・Applied voltage: 30 V DC or less (between output and 0 V)・Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current) |
| Osservazione | Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃+73.4 ℉. |
| Peso | Net weight: 30 g approx.Gross weight: 35 g approx. |
| Dettagli | Compact / Cable type [R type] |
| Prodotto | Amplifier Built-in / U-shaped Micro Photoelectric Sensor |
| Materiale | Enclosure: PBTDisplay section: Polycarbonate |
| Isteresi | 0.05 mm0.002 inor less |
| Protezione | IP64 (IEC) |
| Numero di parte | PM-R45-C3 |
| Nome del prodotto | Amplifier Built-in / U-shaped Micro Photoelectric Sensor [Compact / Cable type]PM-45 |
| Ripetibilità | 0.01 mm0.0004 inor less |
| Tempo di risposta | Under light received condition: 20 μs or lessUnder light interrupted condition: 80 μs or less(Maximum response frequency: 3 kHz)(Note)(Note) : Refer to the note on the specification page for the response frequency. |
| Campo di rilevamento | 6 mm0.236 in(fixed) |
| Lunghezza del cablaggio | Extension up to total 100 m328.084 ftis possible with 0.3 mm2, or more, cable.(Note 1) : If the cable is extended to 20 m65.617 ftor longer, confirm that the supply voltage at the end of the cable attached to the sensor is 4.5 V or higher.(Note 2) : For safety applications, do not exceed 30 m98.425 ft. |
| Numero di prodotto | PM-R45-C3 |
| Tensione di alimentazione | 5 to 24 V DC ±10 % Ripple P-P 10 % or less |
| Umidità ambientale | 5 to 85 % RH, Storage: 5 to 95 % RH |
| Elemento emittente | Infrared LED (Peak emission wavelength: 855 nm0.034 mil, non-modulated) |
| Grado di inquinamento | 3 |
| Resistenza agli urti | 15,000 m/s2acceleration (1,500 G approx.) in X, Y and Z directions three times each |
| Illuminazione ambientale | Fluorescent light: 1,000 ℓx at the light-receiving face |
| Temperatura ambiente | -25 to +55 ℃-13 to +131 ℉(No dew condensation or icing allowed), Storage: -30 to +80 ℃-22 to +176 ℉ |
| Consumo attuale | 15 mA or less |
| Indicatore di funzionamento | Orange LED (lights up under light received condition) |
| Resistenza alle vibrazioni | 10 to 2,000 Hz frequency, 1.5 mm0.059 indouble amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each |
| Resistenza di isolamento | 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Oggetto di rilevamento minimo | 0.8 × 1.2 mm0.031 × 0.047 inopaque object |
| Output:Operazione di output | Incorporated with 2 outputs: Light-ON / Dark-ON |
| Resistenza alla tensione | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Uscita: protezione da cortocircuito | Incorporated |
| Normative e certificazioni applicabili | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), ISO 13849-1 (Category 1, PLc) (Note), UL/c-UL certification(Note) : Conformed from December 2021 production. |
Descrizione del prodotto
Miniature and compact horseshoe photoelectric sensor, type R, 6mm range, 2 outputs (one for Light-ON and one for Dark-ON) NPN, 3m cable
Caratteristiche principali
- Qualità di grado industriale
- Conforme RoHS
- Certificato CE
- Garanzia di 1 anno
