ULS501C2

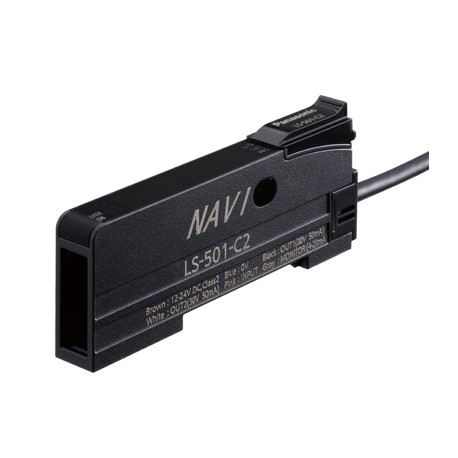

ULS501C2 LS-501-C2 PANASONIC Laser Amplifier (with display), cable type 2m, 2 outputs NPN + analog 4 to 20 mA
$0.00USD
3297 in magazzino
Specifiche chiave
Articolo:Specifications
Cavo:0.2mm2 6-core cabtyre cable, 2 m 6.562 ft long
Peso:Net weight: 75 g approx.Gross weight: 110 g approx.
Dettagli:Amplifiers(Cable type)
Informazioni fornitore
PANASONIC
Prodotti: 4316
Di solito spedito entro 2-3 giorni lavorativi
Qualità garantita
Spedizione veloce
Supporto tecnico
Specifiche tecniche
| Parametro | Valore |
|---|---|
| Articolo | Specifications |
| Cavo | 0.2mm2 6-core cabtyre cable, 2 m 6.562 ft long |
| Peso | Net weight: 75 g approx.Gross weight: 110 g approx. |
| Dettagli | Amplifiers(Cable type) |
| Prodotto | Amplifier-separated Type Digital Laser Sensor |
| Materiale | Enclosure: PolycarbonateCover: PolycarbonateSwitch: Polyacetal |
| Accessorio | FX-MB1 (Amplifier protective seal): 1 set |
| Protezione | IP40(IEC) |
| Numero di parte | LS-501-C2 |
| Nome del prodotto | Amplifier-separated Type Digital Laser Sensor LS-500 |
| Tempo di risposta | H-SP: 60 micro s or less, FAST: 150 micro s or less, STD: 250 micro s or less, LONG: 500 micro s or less, U-LG: 5 ms or less, HYPR: 24 ms or less selectable |
| Input esterno | NPN non-contact input- Signal condition High: +8 V to +V DC or open, Low: 0 to +2 V DC (source current 0.5 mA or less)- Input impedance: 10 kOhm approx.(Note：Select either sensing output 2 or external input.) |
| Numero di prodotto | LS-501-C2 |
| Tensione di alimentazione | 12 to 24 V DC +10-15% Ripple P-P 10 % or less |
| Funzione timer | OFF-delay timer, ON-delay timer, ONE-SHOT timer, ON / OFF-delay timer, ON-delay / ONE-SHOT timer,switchable either effective of ineffective, with variable timer periodOFF-delay timer, ON-delay timer, ONE-SHOT timer,switchable either effective of ineffective, with variable timer period |
| Prolunga del cavo | Extension up to total 100 m 328.084 ft is possible with 0.3mm2, or more, cable. |
| Display digitale | 8-digit 7-segment digital display (4-digit green LED + 4-digit red LED), MODE indicator (Yellow LED): L/D, CUST, PRO |
| Umidità ambientale | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Resistenza agli urti | 98 m/s2acceleration (10 G approx.) in X, Y and Z directions for five times each |
| operazione logica | Between sensing output 1 and calculation target: Disabled / and / or / xor, selectableCalculation target: Sensing output 2 / adjacent upstream amplifier (sensing output 1) / external input, selectable |
| Consumo energetico | Normal operation: 1,200 mW or less (Current consumption 50 mA or less at 24 V supply voltage,excluding monitor current output)ECO mode: 980 mW or less (Current consumption 40 mA or less at 24 V supply voltage,excluding monitor current output) |
| Temperatura ambiente | -10 to +55degrees + 14 to 131 degrees Fahrenheit (If 4 to 7 units are mounted close together, -10 to +50 degrees +14 to +122 degrees Fahrenheit ; if 8 to 12 units are mounted close together, -10 to +45 degrees +14 to +113 degrees Fahrenheit )(No dew condensation or icing allowed), Storage: -20 to +70 degrees -4 to +158 degrees Fahrenheit |
| Indicatore di funzionamento | Orange LED (lights up when sensing output 1 or sensing output 2 is ON) |
| Impostazione della sensibilità | 2-level teaching / limit teaching / full auto teaching / manual adjustment |
| Funzione timer: Tempo | Timer range '' ms'': 0.5 ms approx., 1 to 9,999 ms approx., in approx. 1 ms intervalsTimer range '' sec'': 0.5 sec. approx., 1 to 32 sec. approx., in approx. 1 sec. intervalsTimer range '' 1/10 ms'': 0.05 ms approx., 0.1 to 999.9 ms approx., in approx. 0.1 ms intervals, Set separately for each output. |
| Resistenza alle vibrazioni | 10 to 150 Hz frequency, 1.5 mm double amplitude or maximum acceleration 98 m/s2in X, Y, and Z direction for 2 hours each. |
| Resistenza di isolamento | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Conformità normativa | EMC Directive, RoHS Directive |
| Monitorare l'uscita di corrente | Output current: Approx. 4 to 20 mA (H-SP, FAST, STD: at 0 to 4,000 indication)Response time: 2 ms or lessZero point: 4 mA plus or minus 1 % F.S.Span: 16 mA plus or minus 5 % F.S.Linearity: plus or minus 3 % F.S.Load resistance: 0 to 250 Ohm |
| Funzione di input esterno | Laser emission halt / teaching (full-auto teaching, limit teaching, 2 point teaching) / logic operation setting / copy lock /display adjustment / data bank load / data bank save, selectable |
| Indicatore di selezione dell'uscita | Yellow LED (lights up when output is selected) |
| Indicatore di emissione laser | Green LED (lights up during laser emission) |
| Resistenza alla tensione | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Intervallo di indicazione della luce incidente | H-SP/FAST/STD: 0 to 4,000LONG/U-LG/HYPR: 0 to 9,999 |
| Uscite di rilevamento (Uscita di rilevamento 1, 2) | NPN open-collector transistor・Maximum sink current: 50 mA (Note：25 mA if 5 or more amplifier are connected in cascade (excluding cable extension).)・Applied voltage: 30 V DC or less (between output and 0 V)・Residual voltage: 2 V or less (at max. sink current)(Note：Select either sensing output 2 or external input as the connector type.) |
| Impostazione dell'uscita di rilevamento: Uscita di rilevamento 1 | Normal mode, differential mode, hysteresis mode, window comparator mode, selectable |
| Impostazione dell'uscita di rilevamento: Uscita di rilevamento 2 | Normal mode, differential mode, hysteresis mode, self-diagnostic output mode, answer-back output mode, selectable(Note：Select either sensing output 2 or external input.) |
| Funzione di prevenzione automatica delle interferenze | Incorporated(Note：Number of units that can be mounted close together: 0 for H-SP; 2 for FAST; 4 for STD, LONG, U-LG, or HYPR) |
| Uscite di rilevamento (Uscita di rilevamento 1, 2): Funzionamento dell'uscita | Selectable either Light-ON or Dark-ON |
| Uscite di rilevamento (Uscita di rilevamento 1, 2): Protezione da cortocircuito | Incorporated |
Descrizione del prodotto
LS500. Laser Amplifier (with display), 2m cable, 2 NPN + analog outputs
Caratteristiche principali
- Qualità di grado industriale
- Conforme RoHS
- Certificato CE
- Garanzia di 1 anno
