UHP-350R-12

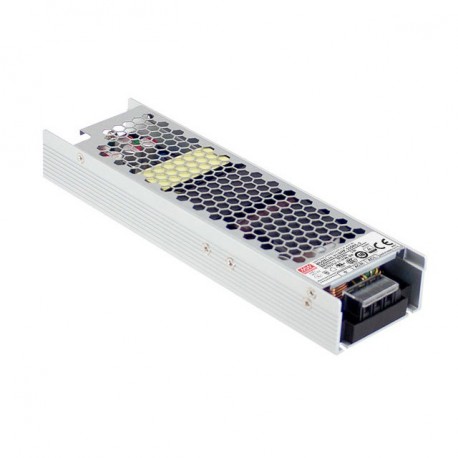

UHP-350R-12 MEANWELL AC-DC Slim Single output enclosed power supply with PFC, Output 12VDC / 29.2A, DC OK si..
$0.00USD
4498 in magazzino
Specifiche chiave
Nome:UHP-350R-12
Stato:New
Formato:Box
Serie:UHP-350R
Informazioni fornitore
MEANWELL
Prodotti: 6448
Di solito spedito entro 2-3 giorni lavorativi
Qualità garantita
Spedizione veloce
Supporto tecnico
Specifiche tecniche
| Parametro | Valore |
|---|---|
| Nome | UHP-350R-12 |
| Stato | New |
| Formato | Box |
| Serie | UHP-350R |
| Approvazioni | CCC, CE, EAC, UL |
| Potenza (W) | 350,40 |
| Sottoformato | Or |
| Larghezza (mm) | 62.00 |
| Altezza (mm) | 31.00 |
| Ingresso CA Max | 264,00 |
| Ingresso CA Min | 90,00 |
| Applicazioni | Automation of Buildings, Appliances, Lighting, Industrial, Telecommunications |
| Produttore | MEAN WELL |
| Tipo di prodotto | Power supply AC/DC |
| Isolamento (V) | 3.750,00 |
| Tensione di uscita | 12,00 |
| Potenza di picco (W) | 350.4 |
| Connettore di ingresso | Screw-Type |
| Frequenza di ingresso | 50 Hz, 60 Hz |
| Lungo/Sfondo | 220.00 |
| Descrizione lunga | Redundant Power supply in case of grid.Certified source for industrial applications, and home automation.Format in case of grid. U-type with low profile.Range of universal input90-264vac47-63Hz.Output voltage12vdc. Adjustable by potentiometer (11,4-12,6 Vdc).Output intensity29,2 To. Range of output current 0-29,2 according To the demand load.Power:350,4 W.Efficiency typical:91%.Factor corrector, power>0,94to 230vac at full load.Protection against short circuit, over load, over voltage and temperature.Input class I with grounding.LED indicator of operation.Active signal DC-OK by optocoupler.Paralelizable for redundancy and to increase power.Operating altitude up to5000 metres.Working temperature: from-30ºCup+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:220 x 62 x 31.3 years warranty.Manufacturer: MEAN WELLThe series UHP are switching power supplies grid-type, U-shape and low profile with high efficiency.Support input voltages of 300Vca for 5 seconds and use components of the highest reliability. Support peak loads of up to 150%, during 100ms, which allows you to start heavy loads or withstand spikes without the need to oversize the power source. Have a power LED. Are certified to operate up to 5000 meters of altitude. Have multiple protections (short circuit, overload, over voltage and temperature). Designed for multiple applications such as mechanical and electrical equipment, appliances, LED panels, industrial machinery, control of industrial systems. Are certified CE, UL, CAS, CCC and regulations for residential use EN60335-1 and are designed to comply with EN61558-1-2 and EN61558-2-16. Its design semiencapsulado to provide greater protection against dust and moisture.This version UHP-200R includes a function of redundancy, so that we can connect two sources in parallel. When in parallel operation, the maximum load should not be greater than the nominal power of the sources used. They also have an active signal DC-OK by using optocouplerThe series UHP these sources are robust and reliable for all types of applications. |
| Connettore di uscita | Screw-Type |
| Tipo di ingresso CA | Single-phase |
| Garanzia (anni) | 3,00 |
| Paese di origine | China |
Descrizione del prodotto
More details
Caratteristiche principali
- Qualità di grado industriale
- Conforme RoHS
- Certificato CE
- Garanzia di 1 anno
Dettagli tecnici
Redundant Power supply in case of grid.
