UHGC1200

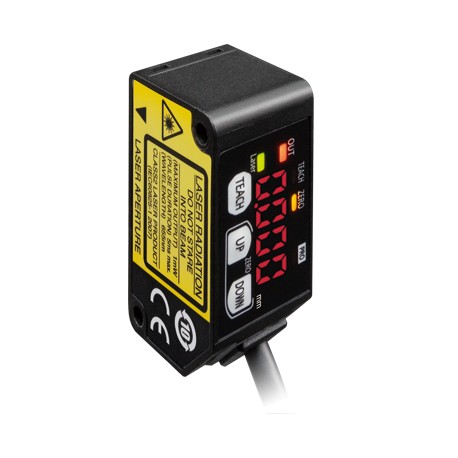

UHGC1200 HG-C1200 PANASONIC Compact Laser Displacement Sensor, 200mm+/-80mm, NPN, 0-5V/4-20mA, cable 2m
$0.00USD
4724 in magazzino
Specifiche chiave
Articolo:Specifications
Cavo:5-core composite cable, 2 m6.5617 ftlong
Peso:Net weight: 35 g approx. (without cable), 85 g approx. (including cable)
Dettagli:Measurement center 200mm 7.874 in type
Informazioni fornitore
PANASONIC
Prodotti: 4316
Di solito spedito entro 2-3 giorni lavorativi
Qualità garantita
Spedizione veloce
Supporto tecnico
Specifiche tecniche
| Parametro | Valore |
|---|---|
| Articolo | Specifications |
| Cavo | 5-core composite cable, 2 m6.5617 ftlong |
| Peso | Net weight: 35 g approx. (without cable), 85 g approx. (including cable) |
| Dettagli | Measurement center 200mm 7.874 in type |
| Prodotto | CMOS type Micro Laser Distance Sensor |
| Materiale | Enclosure: Aluminum die-castFront cover: Acrylic |
| Linearità | ±0.2%F.S. |
| Protezione | IP67 (IEC) |
| Numero di parte | HG-C1200 |
| Fonte di luce | Red semiconductor laser Class 2 [IEC / EN/ JIS / GB / KS / FDA (Note) ]Max. output: 1 mWemission peak wavelength: 655 nm0.026 mil(Note) This product complies with the FDA regulations (FDA 21 CFR 1040.10 and 1040.11) in accordance with FDA Laser Notice No. 56, except for complying with IEC 60825-1 Ed. 3. |
| Nome del prodotto | CMOS type Micro Laser Distance Sensor HG-C |
| Diametro del raggio | ø300 μm11.8111 milapprox.(Note) This is the size in the measurement center distance. These values were defined by using 1/e2(13.5% approx.) of the center light intensity. Due to leak light outside the specified area, the reflectance around the detecting point may be higher than at the point and this may affect the measurement value. |
| Ripetibilità | 200 μm7.874 mil |
| Tempo di risposta | Switchable between 1.5 ms / 5 ms / 10 ms |
| Uscita di controllo | NPN open-collector transistor- Maximum sink current: 50 mA- Applied voltage: 30 V DC or less (Between control output to 0V)- Residual voltage: 1.5 V or less (At 50 mA sink current)- Leakage current: 0.1 mA or less |
| Input esterno | NPN non-contact input- Input conditionsInvalid: +8 to +V DC or OpenValid: 0 to +1.2 V DC- Input impedance: 10 kΩ approx. |
| Numero di prodotto | HG-C1200 |
| Tensione di alimentazione | 12 to 24 V DC ±10 %, Ripple P-P 10 % or less |
| Prolunga del cavo | Extension up to total 10 m393.701 ftis possible with 0.3 mm2, or more, cable. |
| Campo di misura | ±80 mm3.150 in |
| Umidità ambientale | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Grado di inquinamento | 2 |
| Resistenza agli urti | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| Altitudine operativa | 2,000 m6561.680 ftor less |
| Illuminazione ambientale | Incandescent light: 3,000 ℓx or less at the light-receiving face |
| Temperatura ambiente | -10 to +45 ℃-14 to 113 ℉(No dew condensation or icing allowed), Storage: -20 to +60 ℃-4 to 140 ℉ |
| Consumo attuale | 40 mA or less (at 24V DC supply voltage)65 mA or less (at 12V DC supply voltage)Note : Specifications have been changed from shipment in August, 2016. For shipment before July 2016 ： 40 mA or less (at 24 V DC supply voltage), 60 mA or less (at 12 V DC supply voltage) |
| Resistenza alle vibrazioni | 10 to 55 Hz (period: 1 min.) frequency, 1.5 mm0.059 indouble amplitude in X, Y and Z directions for two hours each |
| Distanza dal centro di misura | 200 mm7.874 in |
| Caratteristiche di temperatura | 0.03% F.S./℃ |
| Uscita di controllo: funzionamento dell'uscita | Either Light-ON or Dark-ON |
| Uscita analogica: Uscita di corrente analogica | • Output range: 4 to 20mA (at alarm: 0mA)• Output impedance: 300Ω or lessNote : Analog current output has been added from shipment in August 2016. |
| Uscita analogica: Uscita di tensione analogica | • Output range: 0 to 5 V (at alarm: +5.2 V)• Output impedance: 100Ω |
| Uscita di controllo: protezione da cortocircuito | Incorporated (Auto reset type) |
| Normative e certificazioni applicabili | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), FDA Regulations, UL/c-UL Certification(Note) : The UL/c-UL certified products have been shipped since April, 2017. |
Descrizione del prodotto
Micro Displacement Laser Sensor, measurement range 200mm. ± 80mm., repeatability 200μm., beam diameter approx. 300μm., digital NPN output, analog output 0-5V / 4-20mA, cable 2m
