Disponibile Prodotto più richiesto
SPD-20HP-480S

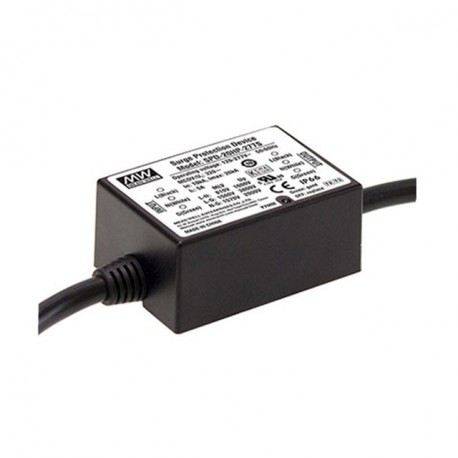

SPD-20HP-480S MEANWELL High Performance surge protection device for 480VAC 50/60Hz / 510VAC, Max surge 20kA
$0.00USD
3272 in magazzino
Specifiche chiave
Nome:SPD-20HP-480S
Stato:New
Formato:Box
Serie:SPD-20HP
Informazioni fornitore
MEANWELL
Prodotti: 6448
Di solito spedito entro 2-3 giorni lavorativi
Qualità garantita
Spedizione veloce
Supporto tecnico
Specifiche tecniche
| Parametro | Valore |
|---|---|
| Nome | SPD-20HP-480S |
| Stato | New |
| Formato | Box |
| Serie | SPD-20HP |
| Approvazioni | CE, UL |
| Sottoformato | IP66 |
| Larghezza (mm) | 67.70 |
| Altezza (mm) | 32.00 |
| Ingresso CA Max | 510,00 |
| Applicazioni | Automation of Buildings, Appliances, Lighting, Industrial, Instrumentation, Medical, Solar, Telecommunications |
| Produttore | MEAN WELL |
| Tipo di prodotto | Protector against Transient |
| Connettore di ingresso | Cable |
| Frequenza di ingresso | 50 Hz, 60 Hz |
| Lungo/Sfondo | 71.60 |
| Descrizione lunga | Protector of transients.Format plastic boxIP66.Input voltage range347-480Vac. 47-63Hz.Maximum working voltage continuous510Vca.Voltage protectionrated1400Vand maximum1000V(between line-to-neutral).Voltage protectionrated1560Vand maximum3800V(between line-to-ground).Voltage protectionrated1570Vand maximum2900V(between neutral-earth).Current nominal discharge 10kA.Maximum transient current 20kA.Response time <8/20ás.Connected in series with the mains.Led indicator of operation.Cable with double insulation.Thermal protection.Working temperature: from-40ºCup+75ºCof ambient temperature.Dimensions (Length x Width x Height) [mm]:71,6 x of 67.7 x 32.3 years of warranty.Manufacturer: MEAN WELL.The protectors-series SDP-20HP are high performance devices designed to protect sensitive equipment of an installation when we have problems with the electric grid. Transients or voltage surges of high intensity is typically occur on the electrical network due to sudden changes in consumption or other problems of an electrical supply. This generates an overvoltage in the electrical network of high energy that can damage connected equipment. The series SPD-20HP allow us to protect any sensitive electronic equipment like e.g. transformers LED or LED drivers in lighting public or connected equipment in areas with common problems on the electrical network such as industrial estates.The installation is performed in series with the electric network, equipped with a led indicator of operation visible that notifies us when it is necessary to change the same due to the end-of-life.For its proper functioning, we must have a good grounding already in case of overvoltage, the excess energy was derived to the earth. We must have an impedance less than 3 ohms to ground to work properly.This team doesn't protect us in the event of lightning strike directly that can generate a voltage of more than a million volts. For this type of problem, there are protectors specifically for ray.With plastic housing up to IP66. Series SDP-20HP high performance has a high efficiency designed for applications in road lighting, lighting for outdoor and shopping centres, public lighting, tunnels, lighting of aquariums, digital signage, road lighting, etc, Meets the requirements of UL1449.The temperature protection eliminates any possible problem of fire even in the event that the varistors have reached the end of its life. The protection of these computers is performed by using varistors that are reducing your life according to the number and intensity of the transients. Being able to withstand a transient of 20,000 amps or 1,000,000 transients 240A.The series SPD offers maximum protection thanks to limits exceptionally accurate and fast voltage transient that can reach the equipment connected to the same. |
| Connettore di uscita | Cable |
| Tipo di ingresso CA | Single-phase |
| Garanzia (anni) | 3,00 |
| Paese di origine | Taiwan |
| Protezione dalla tensione | 3.800,00 |
| Intensità di uscita massima (mA) | 20.000,00 |
Descrizione del prodotto
More details
Caratteristiche principali
- Qualità di grado industriale
- Conforme RoHS
- Certificato CE
- Garanzia di 1 anno
Dettagli tecnici
Protector of transients.
Documenti del prodotto
Scheda tecnica
Specifiche tecniche e dati di prestazione
Manuale utente
Guida di installazione e utilizzo
