Disponibile Prodotto più richiesto
RSD-60G-24

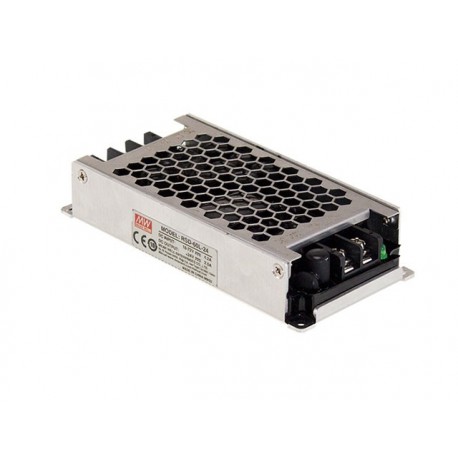

RSD-60G-24 MEANWELL DC-DC Enclosed converter, Input 9-36VDC, Output 24VDC / 2.5A, railway standard EN50155, ..
$0.00USD
3390 in magazzino
Specifiche chiave
Nome:RSD-60G-24
Stato:Recommended Model
Formato:Box
Serie:RSD-60
Informazioni fornitore
MEANWELL
Prodotti: 6448
Di solito spedito entro 2-3 giorni lavorativi
Qualità garantita
Spedizione veloce
Supporto tecnico
Specifiche tecniche
| Parametro | Valore |
|---|---|
| Nome | RSD-60G-24 |
| Stato | Recommended Model |
| Formato | Box |
| Serie | RSD-60 |
| Approvazioni | EC |
| Potenza (W) | 60,00 |
| Sottoformato | Grid |
| Larghezza (mm) | 60.00 |
| Altezza (mm) | 25.00 |
| Intervallo di input | 4:1 |
| Applicazioni | Railway, Industrial, Telecommunications |
| Ingresso CC Max | 36,00 |
| Ingresso CC Min | 9,00 |
| Produttore | MEAN WELL |
| Tipo di prodotto | Dc/DC converters |
| Isolamento (V) | 4.000,00 |
| Tensione di uscita | 24,00 |
| Potenza di picco (W) | Sixty |
| Gamma di ingresso CC | 9, 9,2, 9,9, 10, 10,5, 10,8, 12, 13,2, 13,5, 14, 14,4, 15, 16,2, 16,5, 16,8, 18, 19, 20,4, 21, 21,6, 22,5, 24, 25,2, 26,4, 28, 28,8, 30, 31,2, 32, 32,4, 33,6, 35, 36 |
| Connettore di ingresso | Screw-Type |
| Lungo/Sfondo | 128.00 |
| Descrizione lunga | Dc/DC converter Rail is a Regulated Isolated Output.Converter for Railway applications, Industrial or Telecommunications.Input range9-36Vcc(27,6-32,4 Vdc for 1 second).Output voltage24vdc.Output intensity2,5 A.Power:60W.Isolation input-output 4000Vcc.Efficiency of the90%.Operating temperature from-40up+70 ° C(see the curve derived in the technical data sheet). 85 ° c for 10 minutes with ventilation by conduction.Dimensions (Width x Height x depth):128 x 60 x 25mm.3 years of warranty.Manufacturer: MEAN WELL.This model has a hold time (hold-up time) to the output of10ms at full load.It is a converter designed for railway applications, industrial or telecommunications.Is certified with the regulations for railway EN50155 and EN45545-2 in front of the fire.Can operate up to 55C at full load and 70 ° C at 60% load or 70 ° C ambient temperature with ventilation by driving without losses. Also supports a temperature range of more demanding level rail Tx to 85ºC ambient temperature for 10 minutes with ventilation by driving on a metal surface.This converter semi-encapsulation has been designed for the most demanding applications at the level of vibration, temperature, and humidity. Has a low profile of only 25mm.Its output is protected against short-circuits and overloads by limiting output current, this allows you to start loads with a high inrush. |
| Connettore di uscita | Screw-Type |
| Garanzia (anni) | 3,00 |
| Paese di origine | Taiwan |
Descrizione del prodotto
More details
Caratteristiche principali
- Qualità di grado industriale
- Conforme RoHS
- Certificato CE
- Garanzia di 1 anno
Dettagli tecnici
Dc/DC converter Rail is a Regulated Isolated Output.
Documenti del prodotto
Scheda tecnica
Specifiche tecniche e dati di prestazione
Manuale utente
Guida di installazione e utilizzo
