Disponibile Prodotto più richiesto
RSD-300D-24

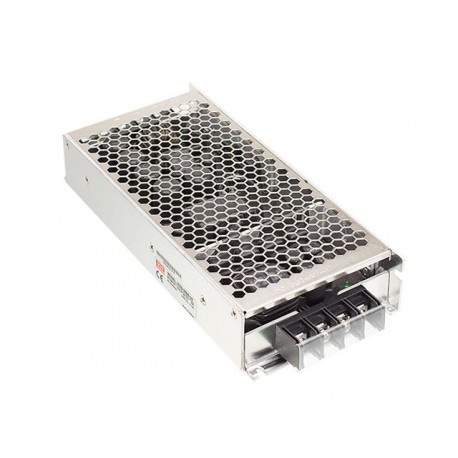

RSD-300D-24 MEANWELL DC-DC Enclosed converter, Input 57.6-154VDC, Output +24VDC / 11.3A, railway standard EN..
$117.33USD
116 in magazzino
Specifiche chiave
Nome:RSD-300D-24
Stato:Recommended Model
Azione:Yes
Formato:Box
Informazioni fornitore
MEANWELL
Prodotti: 6448
Di solito spedito entro 2-3 giorni lavorativi
Qualità garantita
Spedizione veloce
Supporto tecnico
Specifiche tecniche
| Parametro | Valore |
|---|---|
| Nome | RSD-300D-24 |
| Stato | Recommended Model |
| Azione | Yes |
| Formato | Box |
| Serie | RSD-300 |
| Approvazioni | EC |
| Potenza (W) | 300,00 |
| Sottoformato | IP20 |
| Larghezza (mm) | 97.00 |
| Altezza (mm) | 40.00 |
| Intervallo di input | 2:1 |
| Applicazioni | Railway, Industrial, Telecommunications |
| Ingresso CC Max | 143,00 |
| Ingresso CC Min | 67,20 |
| Produttore | MEAN WELL |
| Tipo di prodotto | Dc/DC converters |
| Isolamento (V) | 4.000,00 |
| Tensione di uscita | 24,00 |
| Potenza di picco (W) | Three hundred |
| Gamma di ingresso CC | 67,2, 72, 75, 77, 88, 93,6, 100, 110, 143 |
| Connettore di ingresso | Screw-Type |
| Lungo/Sfondo | 216.00 |
| Descrizione lunga | Dc/DC converter rail is a regulated isolated output.Converter for railway applications,industrial or telecommunications.Input range67,2-143Vcc(57,6-154Vcc for 1 second). Range rail to 72V input.Output voltage24vdc.Output intensity12,5 A.Power:300W.Isolation input-output 4000Vcc.Efficiency of the91,5%.Operating temperature from-40up+70 ° C(see the curve derived in the technical data sheet). 85 ° c for 10 minutes with ventilation by conduction.Dimensions (Length x Width x Height):216 x 97 x 40mm.3 years of warranty.Manufacturer: MEAN WELL.It is a converter designed for railway applications, industrial or telecommunications.Is certified with the regulations for railway EN50155 and EN45545-2 in front of the fire.Can operate up to 55C at full load and 70 ° C at 60% load or 70 ° C ambient temperature with ventilation by driving without losses. Also supports a temperature range of more demanding level rail Tx to 85ºC ambient temperature for 10 minutes with ventilation by driving on a metal surface.This converter semi-encapsulation has been designed for the most demanding applications at the level of vibration, temperature, and humidity. Has a low profile of only 40mm and uses only components prepared for high temperatures as for example capacitors of 105ºC.It has a low noise and ripple, and high efficiency and is protected against reverse polarity at the input. The inrush current is limited by a resistor in series with a MOSFET to reduce the peak starting current to reliably regardless of the ambient temperature.Its output is protected against short-circuits and overloads by limiting output current, this allows you to start loads with a high inrush. |
| Connettore di uscita | Screw-Type |
| Garanzia (anni) | 3,00 |
| Paese di origine | Taiwan |
Descrizione del prodotto
More details
Caratteristiche principali
- Qualità di grado industriale
- Conforme RoHS
- Certificato CE
- Garanzia di 1 anno
Dettagli tecnici
Dc/DC converter rail is a regulated isolated output.
Documenti del prodotto
Scheda tecnica
Specifiche tecniche e dati di prestazione
Manuale utente
Guida di installazione e utilizzo
