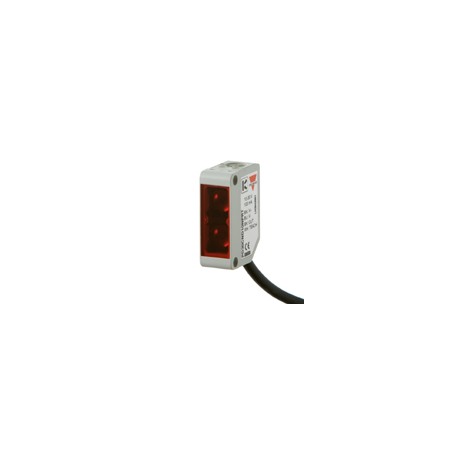

PD30CND10PPDU

PhotoelectricsDiffuse-reflectiveType PD30CND10....DU• Miniature sensor range• Range: 1 m• Sensitivity adjustment by Teach-In programming• Modulated, red light 660 nm• Supply voltage: 10 to 30 VDC• Output: 100 mA, NPN or PNP preset• Make or break switching function programmable• LED indication for output, stability and power ON• Protection: reverse polarity, short circuit and transients• Cable and plug versions• Excellent EMC performance• Dust alarm outputProduct DescriptionOrdering KeyPD30CND10PPM5DUThePD30CND10sensor familycomesin a compact10 x 30 x 20 mm reinforcedPMMA/ABS housing.Thesensorsareusefulin applications wherehigh- accuracy detection as well as small size is required. Compacthousingandhigh powerLED forexcellent performance-size ratio.Type SelectionThe Teach-In function for adjustmentof the sensitivity makes the sensors highly flexible. The output type is preset (NPN or PNP), and the output switching function is oneNOorNCoutputand one dust output NO or NC.TypeHousing style Housing size Housing material Housing length Detection principle Sensing distance Output typeOutput configurationConnection typeDust OutputHousing Range ConnectionOrdering no. Ordering no. W x H x D Sn NPNPNPMake or break switchingMake or break switching10 x 30 x 20 mm 1 mCablePD 30 CND 10 NPDU PD 30 CND 10 PPDU10 x 30 x 20 mm 1 mPlug PD 30 CND 10 NPM5DUPD 30 CND 10 PPM5DUSpecificationsRated operating distance (Sn)Up to 1 m,referece target Kodak test card R27, white, 90% reflective, 200 x 200 mmBlind zone 20 mmSensitivity Adjustable by Teach-InTemperature drift ≤ 0.1%/ºCHysteresis (H)(differential travel) ≤ 10%Rated operational volt. (UB )10 to 30 VDC (ripple included)Ripple (Urpp ) ≤ 10%Output currentContinuous (Ie) ≤ 100 mA Short-time (I) ≤ 100 mA(max. load capacity 100 nF)Dust output currentContinuous (Ie) ≤ 20 mA Short-time (I) ≤ 20 mA(max. load capacity 100 nF)No load supply current (Io)≤ 30 mA @ 24 VDCMinimum operational current (Im) 0.5 mAOFF-state current (Ir ) ≤ 100 µAVoltage drop (Ud ) ≤ 2.4 VDC @ 100 mAProtection Short-circuit, reverse polarity and transientsLight source GaAlAs, LED, 660 nm Light typeRed, modulated Sensing angle ± 2ºAmbient light10,000 luxLight spot110 mm @ 1.5 mOperating frequency1000 HzResponse timeOFF-ON (tON)≤ 0.5 msON-OFF (tOFF ) ≤ 0.5 msPower ON delay (tv) ≤ 300 msOutput functionNPN and PNPPresetOutput configurationNO or NC Programming optionsOutput pin 4 black NO or NC Output pin 2 white NO or NC (dust)Dust alarm outputDelay on operate 20 msIndicationOutput ON LED, yellowSignal stability ON and power ON LED, greenSpecifications are subject to change without notice (19.08.2010) 1
