Disponibile Prodotto più richiesto
MSMA302P1G

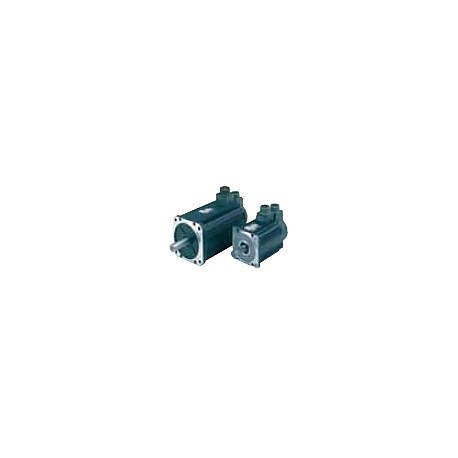

MSMA302P1G PANASONIC Servo Motor MINAS A4 series, 3kW, 9.54 Nm, incremental encoder, key shaft, oil seal
$0.00USD
3175 in magazzino
Specifiche chiave
Articolo:Specifications
Tipo:Low inertia
Lancia:Key-way
Osservazione:1. About Regenerative brake frequencythe frequency of the motor's stops from the rated speed with deceleration without load.. If the load is connected, frequency will be defines as 1/(m+1), where m=load moment of inertia/rotor moment of inertia.・ When the motor speed exceeds the rated speed, regenerative brake frequency is in inverse proportion to thesquare of (running speed/rated speed).・Power supply voltage is AC115 V（at 100 V of the main voltage）、AC230 V（at 200 V of the main voltage).If the supply voltage fluctuates, frequency is in inverse proportion to the square of (Running supply voltage)relative to the value in the table.・When regeneration occurs continuously such cases as running speed frequently changes or vertical feeding, consult us ora dealer.2. About unlimited regenerative brake frequencyIf the effective torque is within the rated torque, there is no limit in generative brake.3. About recommended moment of inertia ratio of the load and the rotorConsult us or a dealer if the load moment of inertia exceeds the specified value.For details, check the catalog and instruction manuals.
Informazioni fornitore
PANASONIC
Prodotti: 4316
Di solito spedito entro 2-3 giorni lavorativi
Qualità garantita
Spedizione veloce
Supporto tecnico
Specifiche tecniche
| Parametro | Valore |
|---|---|
| Articolo | Specifications |
| Tipo | Low inertia |
| Lancia | Key-way |
| Osservazione | 1. About Regenerative brake frequencythe frequency of the motor's stops from the rated speed with deceleration without load.. If the load is connected, frequency will be defines as 1/(m+1), where m=load moment of inertia/rotor moment of inertia.・ When the motor speed exceeds the rated speed, regenerative brake frequency is in inverse proportion to thesquare of (running speed/rated speed).・Power supply voltage is AC115 V（at 100 V of the main voltage）、AC230 V（at 200 V of the main voltage).If the supply voltage fluctuates, frequency is in inverse proportion to the square of (Running supply voltage)relative to the value in the table.・When regeneration occurs continuously such cases as running speed frequently changes or vertical feeding, consult us ora dealer.2. About unlimited regenerative brake frequencyIf the effective torque is within the rated torque, there is no limit in generative brake.3. About recommended moment of inertia ratio of the load and the rotorConsult us or a dealer if the load moment of inertia exceeds the specified value.For details, check the catalog and instruction manuals. |
| Serie | MSMA Series |
| Dettagli | Low inertia, Connector type, IP65 |
| Prodotto | MINAS A4 Family Servo motor |
| Guarnizione dell'olio | with |
| Allegato | IP65 |
| Massa (kg) | 9.3 |
| Cognome | MINAS A4 Family |
| Numero di parte | MSMA302P1G |
| Nome del prodotto | MINAS A4 Family Servo Motor |
| Potenza nominale | 3000 W |
| Freno di stazionamento | without |
| Informazioni su Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Dimensione quadrata della flangia | 120 mm sq. |
| Corrente massima (A (op)) | 80.0 |
| Coppia nominale (N ⋅ m) | 9.54 |
| Specifiche di tensione | 200 V |
| Connettore encoder motore | Connector |
| Condizioni ambientali | For more details, please refer to the instruction manual. |
| Configurazione di uscita del motore | Connector |
| Dimensione quadrata della flangia (unità: mm) | 120 |
| Velocità di rotazione nominale (giri/min) | 3000 |
| Encoder rotativo: specifiche | 2500 P/r Incremental system |
| Velocità di rotazione nominale massima (giri/min) | 5000 |
| Coppia di picco massima momentanea (N ⋅ m) | 28.6 |
| Frequenza del freno rigenerativo (volte/min) | Without option :No limitWith option : No limitOption (External regenerative resistor) Part No. : DV0P4285 x 2 in parallel |
| Momento di inerzia del rotore (x10-4kg ⋅ m²) | 6.77 |
| Rapporto di momento di inerzia consigliato del carico e del rotore | 15times or less |
