LDC-80DA

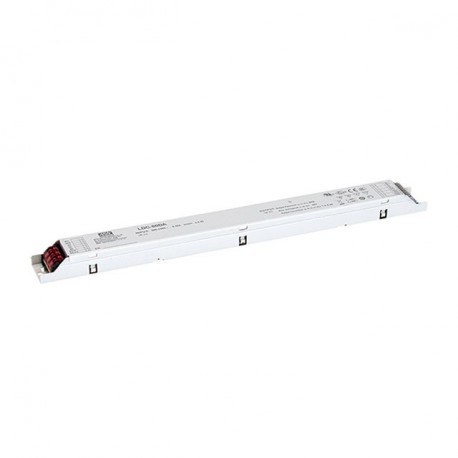

LDC-80DA MEANWELL AC-DC Linear LED driver Constant Power Mode, Output 56VDC / 2.1A, Metal housing design, Di..
$0.00USD
3501 in magazzino
Specifiche chiave
Nome:LDC-80DA
Stato:New
Formato:Box
Serie:LDC-80DA
Informazioni fornitore
MEANWELL
Prodotti: 6448
Di solito spedito entro 2-3 giorni lavorativi
Qualità garantita
Spedizione veloce
Supporto tecnico
Specifiche tecniche
| Parametro | Valore |
|---|---|
| Nome | LDC-80DA |
| Stato | New |
| Formato | Box |
| Serie | LDC-80DA |
| Oscuramento | DALI, DALI 2, Pushbutton |
| Approvazioni | CCC, CE, EAC, ENEC, MM, UL |
| Potenza (W) | 80,00 |
| Sottoformato | Ballast |
| Larghezza (mm) | 30.00 |
| Altezza (mm) | 21.00 |
| Ingresso CA Max | 295,00 |
| Ingresso CA Min | 180,00 |
| Applicazioni | Lighting |
| Produttore | MEAN WELL |
| Tipo di prodotto | LED Driver |
| Isolamento (V) | 3.750,00 |
| Potenza di picco (W) | Eighty |
| Connettore di ingresso | Quick Connector |
| Frequenza di ingresso | 50 Hz, 60 Hz |
| Lungo/Sfondo | 360.00 |
| Descrizione lunga | LED driver dimmable by DALI and push button with constant power.Specially designed for powering LEDs directly in a steady stream.Format metal box type ballastIP20.Input range180-295Vca47-63Hz.Range of output constant current700-2100mA.Adjustable through resistance (700-2100mA).Maximum output power rating of between1400-2100mA.Range of output voltage with current mode constant27 to 56Vccaccording to demand load and according to adjustment of the output current.Power:80W.Efficiency typical:90%.Regulation DALI0% to 100% of the output current with regulation DALI, DALI 2 or push-button (PUSH-DALI). Certificate to DALI.Input class I with grounding.Factor corrector, power>0,95to 230vac at load higher than 50%.Low ripple current <3%, no flash.Harmonic distortionTHD <10%with loads higher than 50%.Input of temperature sensor NTC.Consumption without load <0.5 W.Operating temperature range of caseTcfrom-25ºCup+85ºC.Dimensions (Length x Width x Height):360 x 30 x 21mm.5 years of warranty.Manufacturer: MEAN WELL.The LDC-series-80DA are LED drivers with constant power regulation with DALI, DALI 2 or button(PUSH-DALI). Give an output constant current which can be adjusted by an external resistor connected between the terminal IADJ. This allows us to adjust output current between 700 and 2100mA. The range of output voltage is adjusted to get maximum power between 1400 and 2100mA. In this way we can get the maximum power output while to adjust to different current values. The sources of constant power offer a wide operating range (voltage + current), allowing to use one model for different applications with different requirements of voltage and current. Input of temperature sensor using an NTC, which allows us to reduce the output current and protect the LEDs in case of excessive warming in the same (sensor not included).Have a minimum ripple current thus providing light of the highest quality without flicker. Also have a small harmonic distortion in order to avoid creating problems in the electrical network, and a high correction factor of power.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. The output current can be adjusted via an external resistor.The LDC-series-80 are LED drivers, class I with grounding and output power limited class 2.With metal housing type ballast IP20, LDC-series-80 has a high efficiency designed for applications of panels of LED lighting, indoor lighting and due to its elongated shape in the form of ballast, are ideal for LED lighting online.They have all kinds of protections against over loads, short circuit, over output voltage, temperature of the driver and the own Led.Are certified CE, ENEC, UL, MM, CCC for use in a multitude of applications and countries.Compatible with any DALI 2. DALI 2 is the new version of the DALI protocol and is compatible with DALI 1 offering some extra features such as controlling multi-master. |
| Connettore di uscita | Quick Connector |
| Tipo di ingresso CA | Single-phase |
| Garanzia (anni) | 5,00 |
| Paese di origine | China |
| Corrente di uscita mA | 700, 750, 800, 850, 900, 950, 1000, 1050, 1100, 1150, 1200, 1250, 1300, 1350, 1400, 1450, 1500, 1550, 1600, 1650, 1700, 1750, 1800, 1850, 1900, 1950, 2000, 2050, 2100 |
| Intensità di uscita minima (mA) | 700,00 |
| Intensità di uscita massima (mA) | 2.100,00 |
Descrizione del prodotto
More details
Caratteristiche principali
- Qualità di grado industriale
- Conforme RoHS
- Certificato CE
- Garanzia di 1 anno
Dettagli tecnici
LED driver dimmable by DALI and push button with constant power.
