Disponibile Prodotto più richiesto
KDA-064

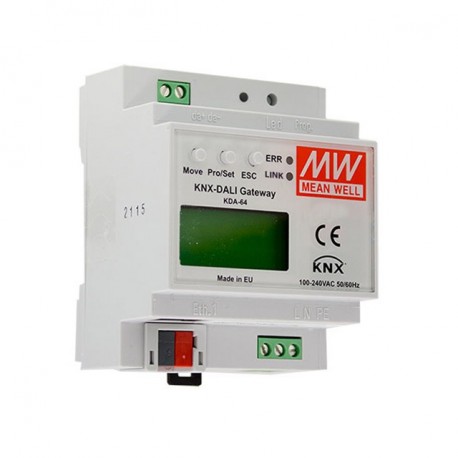

KDA-064 MEANWELL KNX to DALI protocol bi-directional gateway
$0.00USD
3745 in magazzino
Specifiche chiave
Nome:KDA-64
Stato:New
Formato:Din Rail
Serie:KDA-64
Informazioni fornitore
MEANWELL
Prodotti: 6448
Di solito spedito entro 2-3 giorni lavorativi
Qualità garantita
Spedizione veloce
Supporto tecnico
Specifiche tecniche
| Parametro | Valore |
|---|---|
| Nome | KDA-64 |
| Stato | New |
| Formato | Din Rail |
| Serie | KDA-64 |
| Approvazioni | EC |
| Sottoformato | IP20 |
| Larghezza (mm) | 72.00 |
| Altezza (mm) | 55.00 |
| Applicazioni | Building automation, Lighting |
| Produttore | MEAN WELL |
| Tipo di prodotto | Protocol converters |
| Isolamento (V) | 3.750,00 |
| Segnale di uscita | DALI, ETHERNET, KNX |
| Connettore di ingresso | Quick Connector |
| Lungo/Sfondo | 86.00 |
| Descrizione lunga | Gateway KNX protocol to the DALI protocol bi-directional.Signal converter KNX signal DALI.Format ladder to install on a DIN rail.Range of universal input100-240vac. 47-63Hz.Input signals:KNX, DALI, Ethernet.Output signal:KNX, DALI, Ethernet.Power supply DALI integrated with output 16-20vdc 250mA.Can control 64 DALI addresses, 16 scenes and 16 groups.Control of lighting via the button or the integrated web server.LCD screen 2x12.Class II non-grounded.Working temperature: from-5ºCup+45 ° Cof ambient temperature.Dimensions (Length x Width x Height) [mm]:86 x 72 x 55.3 years warrantyManufacturer: MEAN WELL.The KDA-64 is a gateway that serves to connect the KNX protocol to the DALI protocol. Converts the signal to KNX on cue DALI, giving us a smart solution for the creation of different networks and control in building automation. As a result, the control of the lighting in the room is incorporated into the building management system KNX. You can control up to 64 devices DALI, 16 scenes and 16 groups. The gateway allows control of a lighting system DALI from the KNX protocol. You can set different levels of regulation of the lighting, individually or by groups or put the 16 scenes pre-established.The gateway KDA-64 transforms the commands of KNX system DALI and also returns the status information of the devices DALI the KNX protocol, thus obtaining a bi-directional communication. The KDA-64 is a device of category 1 (as IN 62386-103). This means that you can only be on a individual on a bus to DALI, and does not support the function of multi-master.The power supply of the bus DALI is already included and can't place another power supply DALI on the same bus.The KDA-64 can also be included in the systems of emergency lighting DALI. The gateway is configured via the buttons on the front panel, the embedded web server or using a plug-in integrated in the software STDS when you build the project, KNX. |
| Connettore di uscita | Screw-Type |
| Garanzia (anni) | 3,00 |
| Paese di origine | Netherlands |
Descrizione del prodotto
More details
Caratteristiche principali
- Qualità di grado industriale
- Conforme RoHS
- Certificato CE
- Garanzia di 1 anno
Dettagli tecnici
Gateway KNX protocol to the DALI protocol bi-directional.
Documenti del prodotto
Scheda tecnica
Specifiche tecniche e dati di prestazione
Manuale utente
Guida di installazione e utilizzo
