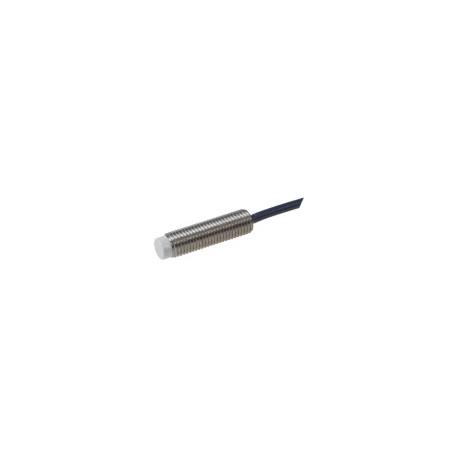

IA08BSN25NO

Proximity Sensors InductiveShort body, Stainless Steel HousingTypes IA, M8• Miniature stainless steel housing M8• Short body• Sensing distance: 1.5 mm or 2.5 mm• Power supply: 10 to 30 VDC• Output: Transistor NPN/PNP, normally open or normally closed• Protection: Short-circuit• LED-indication for output ON• 2 m PVC cable or M8 plugProduct DescriptionOrdering Key IA 08BSF 15NO M5Miniature inductive proximity sensor with reduced body length. Output configuration for NPN/PNP withbothNOandNC typesas standard. M8 stainless steel housing. Connection with 2 m PVC cable or M8 plug.Ind. prox. switch Housing style Housing size Housing material Housing length Detection principle Sensing distance Output typeOutput configurationConnectionType SelectionRated Conn.Ordering no.Ordering no. Ordering no.Ordering no. operating typeTransistor NPNTransistor NPN Transistor PNPTransistor PNP dist. (Sn) Normally open Normally closed Normally open Normally closed1.5 mm 1)CableIA 08 BSF 15 NOIA 08 BSF 15 NC IA 08 BSF 15 POIA 08 BSF 15 PC1.5 mm 1)Plug IA 08 BSF 15 NO M5 IA 08 BSF 15 NC M5 IA 08 BSF 15 PO M5IA 08 BSF 15 PC M52.5 mm CableIA 08 BSN 25 NO IA 08 BSN 25 NCIA 08 BSN 25 POIA 08 BSN 25 PC2.5 mm Plug IA 08 BSN 25 NO M5 IA 08 BSN 25 NC M5IA 08 BSN 25 PO M5IA 08 BSN 25 PC M51) For flush mounting in metalSpecificationsRated operational volt. (UB)10 to 30 VDC (ripple included)Ripple ≤ 10%Rated operational current (Ie)Continuous≤ 200 mA @ + 25°C (+75°F)No-load supply current (Io) ≤ 10 mA (ON) Voltage drop (Ud) < 2,5 V (@ Imax) Protection Short circuit Frequency of operatingcycles (f)2000 HzIndication for output ONLED, yellowRepeat Accuracy ≤ 5%Effective operating dist. (Sr)0.9 x Sn ≤ Sr ≤ 1.1 x SnUsable operating dist. (Su) 0.85 x Sr ≤ Su ≤ 1.15 x SrAmbient temperatureOperating -25° to +70°C (-13° to +158°F) Storage -30° to +75°C (-22° to +167°F)Degree of protectionIP 67 (Nema 1, 3, 4, 6, 13)Housing materialStainless steel, AISI 303Approvals UL, CSA CE-markingYes ConnectionCable2 m, PVC, AWG 26, oil proofPlug M8, CONH5A-xxx SerieSpecifications are subject to change without notice (26.08.10) 1
