HVG-480-30B

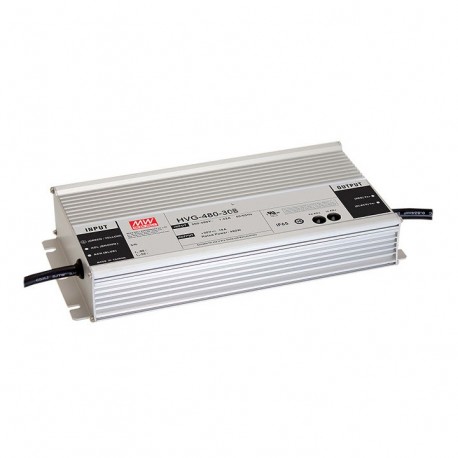

HVG-480-30B MEANWELL AC-DC Single output LED driver Mix mode (CV+CC), Output 16A. 480W, 15-30V. Dimming with..
$0.00USD
3295 in magazzino
Specifiche chiave
Nome:HVG-480-30B
Stato:New
Formato:Box
Serie:HVG-480-B
Informazioni fornitore
MEANWELL
Prodotti: 6448
Di solito spedito entro 2-3 giorni lavorativi
Qualità garantita
Spedizione veloce
Supporto tecnico
Specifiche tecniche
| Parametro | Valore |
|---|---|
| Nome | HVG-480-30B |
| Stato | New |
| Formato | Box |
| Serie | HVG-480-B |
| Oscuramento | 0-10V, 1-10V, Resistance 0-100K, PWM Signal 10V |
| Approvazioni | UL |
| Potenza (W) | 480,00 |
| Sottoformato | IP67 |
| Larghezza (mm) | 125.00 |
| Altezza (mm) | 43.80 |
| Ingresso CA Max | 528,00 |
| Ingresso CA Min | 180,00 |
| Applicazioni | Lighting |
| Produttore | MEAN WELL |
| Tipo di prodotto | LED Driver |
| Isolamento (V) | 3.750,00 |
| Potenza di picco (W) | Four hundred eighty |
| Connettore di ingresso | Cable |
| Frequenza di ingresso | 50 Hz, 60 Hz |
| Lungo/Sfondo | 262.00 |
| Descrizione lunga | LED driver dimmable with phase input.Specially designed for powering LEDs directly in a steady stream.Format in metal box sealedIP67.Input range180-528Vca47-63Hz.Output in constant current16A.Range of output voltage with current mode constant15 to 30vdcaccording to demand load.Power:480W.Efficiency typical:94%.Regulation0% to 100% of the output intensity with a slider0-10V / 1-10V,a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can turn off the output, but we need a regulator 0-10V. Regulators 1-10V not arrive to give 0V do not shut down the output.Input class I with grounding.Factor corrector, power>0,98to 230vac at full load.Operating temperature range of caseTcfrom-40ºCup+85ºC.Dimensions (Length x Width x Height):262 x 90 x 43.8 mm5 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source can operate in either Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current.The series HVG are LED drivers, class I grounded.You can also work in voltage mode constant giving a fixed voltage of 30V if the load is powered at constant voltage and does not overcome the maximum output power.With metal housing IP67. The series HVG has a high efficiency designed for applications of public lighting, exterior, interior, or any application of LED lighting. Approved HL Class I Division 2 for ex-zones in the US. Complies with the requirements of security at the global level for lighting.Can be adjusted by regulatory assets or liabilities0-10Vor1-10V, signal 10V PWM of 100Hz to 3KHz or by resistance of 0 to 100KOhmios. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).With potentiometers assets that you can give 0V to shut down the output without the need of a switch. Dimmers 1-10V we can only reach 10% of regulation without shutting down the output. If you want to regulate the LED strips we recommend the series PWM.Compatible with any regulator 0-10V or 1-10V-market both assets and liabilities. Some compatible models tested are:MEAN WELL DAP-04S01 (compatible with any push button normally open).SIMON: 75317BJC: 5TC8 425LEGRAND: 0784 04ABB- "NIESSEN": N2260.9SIEMENS: 5TC8424EFAPEL: Model 21210LED BOX: Model LD1160188OSRAM: Model DIM MCUJUNG: Model 240-10We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver. |
| Connettore di uscita | Cable |
| Tipo di ingresso CA | Three-phase |
| Garanzia (anni) | 5,00 |
| Paese di origine | Taiwan |
| Corrente di uscita mA | Sixteen thousand |
| Intensità di uscita minima (mA) | 16.000,00 |
| Intensità di uscita massima (mA) | 16.000,00 |
Descrizione del prodotto
More details
Caratteristiche principali
- Qualità di grado industriale
- Conforme RoHS
- Certificato CE
- Garanzia di 1 anno
Dettagli tecnici
LED driver dimmable with phase input.
