HL-C201FE-MK

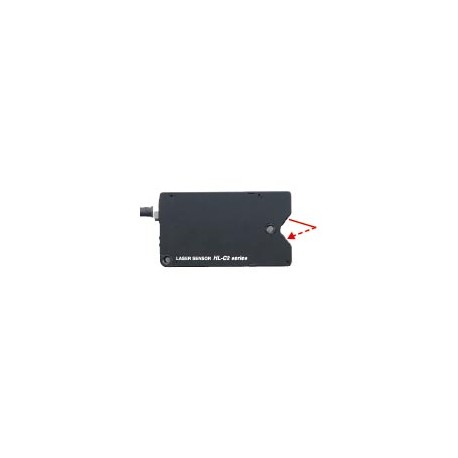

HL-C201FE-MK PANASONIC Sensorhead HL-C2, Laserclass 1, 10±1mm, 0.25μm, Linetype
$0.00USD
4223 in magazzino
Specifiche chiave
Articolo:Specifications
Cavo:Cabtyre cable, 0.5 m 1.640 ft long with connector
Peso:250 g approx. (including cable)
Dettagli:Sensor head (Small size Super-high precision)
Informazioni fornitore
PANASONIC
Prodotti: 4316
Di solito spedito entro 2-3 giorni lavorativi
Qualità garantita
Spedizione veloce
Supporto tecnico
Specifiche tecniche
| Parametro | Valore |
|---|---|
| Articolo | Specifications |
| Cavo | Cabtyre cable, 0.5 m 1.640 ft long with connector |
| Peso | 250 g approx. (including cable) |
| Dettagli | Sensor head (Small size Super-high precision) |
| Prodotto | Ultra High-speed High-precision Laser Displacement Sensor |
| Materiale | Enclosure: Die-cast aluminumCase cover: Die-cast aluminumFront cover: Glass |
| Accessorio | English warning label: 1 set [The FDA regulations conforming type includes a set of both the IEC label (written in English) and JIS label (written in Japanese)]. |
| Linearità | plus or minus 0.02 % F.S.(Note) Indicates error with respect to the ideal linear values for digital displacement output when standard objects were measured by our company. It may vary depending on the types of objects being measured. |
| Modalità di configurazione | Specular reflective |
| Numero di parte | HL-C201FE-MK |
| Fonte di luce | Red semiconductor laser (Peak emission wavelength: 658 nm 0.026 mil)Class 1 (IEC / JIS / FDA, Laser Notice No.50),Max. output: 0.1 mW |
| Nome del prodotto | Ultra High-speed・High-precision Laser Displacement Sensor HL-C2 |
| Diametro del raggio | 20 x 700 micro m 0.787 x 27.559 mil approx.(Note) This beam diameter is the size at the measurement center distance. These values were defined by using 1/e2 (13.5 %) of the center light intensity.If there is a slight leakage of light outside the normal spot diameter and if the periphery surrounding the sensing point has a higher reflectivity than the sensing point itself, then the results may be affected. |
| Numero di prodotto | HL-C201FE-MK |
| Prolunga del cavo | Extension up to total 30 m 98.425 ft is possible, with optional cable. |
| Campo di misura | plus or minus 1 mm plus or minus 0.039 in(Note) Measuring range at sampling periods of 20 micro s and 10 micro s is as follows.20 micro s: +0.1 to +1.0 mm +0.004 to +0.039 in10 micro s: +0.8 to +1.0 mm +0.032 to +0.039 in |
| Elemento ricevente | Linear image sensor |
| Indicatore: Emissione laser | Green LED (lights up during laser emission) |
| Indicatore: Campo di misura | Yellow LED(lights up when near the measurement center distance, blinks when within the measuring range, and lights out when outside of the measuring range.) |
| Distanza dal centro di misura | 10 mm 0.394 in |
| Caratteristiche di temperatura | 0.01 % F.S./degrees |
| Resistenza ambientale: Protezione | IP67 (IEC) (excluding the connector) |
| Risoluzione [Numero medio di campioni] | 0.25 micro m 0.010 mil [256](Note) The P-P value for the deviation in the digital measurement values at the measurement center range has been converted for the measurement center distance. |
| Resistenza ambientale: Umidità ambientale | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Resistenza ambientale: Resistenza agli urti | 196 m/s2 acceleration (20 G approx.) in X,Y and Z directions for three times each |
| Resistenza ambientale: Illuminazione ambientale | Incandescent light: 3,000 liter x at the light-receiving face |
| Resistenza ambientale: Temperatura ambiente | 0 to +45 degrees +32 to +113 degrees Fahrenheit (No dew condensation), Storage: -20 to +70 degrees -4 to +158 degrees Fahrenheit |
| Resistenza ambientale: Resistenza alle vibrazioni | 10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in amplitude in X,Y and Z directions for two hours each |
