Disponibile Prodotto più richiesto
ELG-240-24

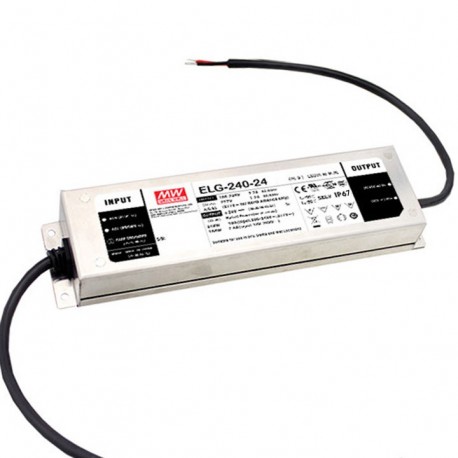

ELG-240-24 MEANWELL AC-DC Single output LED Driver (CV+CC) with PFC, Output 24VDC / 10A, cable output
$0.00USD
4820 in magazzino
Specifiche chiave
Nome:ELG-240-24
Stato:Do not Use for New Designs
Formato:Box
Serie:ELG-240-V
Informazioni fornitore
MEANWELL
Prodotti: 6448
Di solito spedito entro 2-3 giorni lavorativi
Qualità garantita
Spedizione veloce
Supporto tecnico
Specifiche tecniche
| Parametro | Valore |
|---|---|
| Nome | ELG-240-24 |
| Stato | Do not Use for New Designs |
| Formato | Box |
| Serie | ELG-240-V |
| Approvazioni | BIS, CCC, CE, EAC, ENEC, KCC, MM, RCM, UL |
| Potenza (W) | 240,00 |
| Sottoformato | IP67 |
| Larghezza (mm) | 71.00 |
| Altezza (mm) | 37.50 |
| Ingresso CA Max | 305,00 |
| Ingresso CA Min | 100,00 |
| Applicazioni | Lighting |
| Produttore | MEAN WELL |
| Tipo di prodotto | LED Driver |
| Isolamento (V) | 3.750,00 |
| Tensione di uscita | 24,00 |
| Potenza di picco (W) | Two hundred forty |
| Connettore di ingresso | Cable |
| Frequenza di ingresso | 50 Hz, 60 Hz |
| Lungo/Sfondo | 244.00 |
| Descrizione lunga | LED driver.Specially designed to feed LED strips.Format in metal box sealedIP67.Input range100-305Vca47-63Hz.Output voltage24vdc.Output intensity10A.Range of output current, 0-10v,4 To according to demand load.Power:240W.Efficiency typical:92%.Input class I with grounding.Factor corrector, power>0.95to 230vac at full load.Consumption without load <0.5 W.Operating temperature range of caseTcfrom-40ºCup+90ºC.Dimensions (Length x Width x Height):244 x 71 x 37.5 mm5 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with LED strips or LED bulbs, which are fed at constant voltage. Working mode constant voltage giving a fixed voltage of 24V if the load is powered at constant voltage and does not overcome the maximum output power.The series ELG are Led drivers, class I grounded. The own metal box serves to connect the ground of security. You can ask for a version with ground cable from the input (3 wires) by adding-3Y at the end of the model. For example ELG-240-24-3Y.This source can operate in either constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current.With metal housing, waterproof to IP67. The series ELG has a high efficiency designed for applications of public lighting, architectural, outdoor or any application of LED lighting need a driver of high quality. Approved HL Class I Division 2 for ex-zones in the US. |
| Connettore di uscita | Cable |
| Tipo di ingresso CA | Single-phase |
| Garanzia (anni) | 5,00 |
| Paese di origine | China |
Descrizione del prodotto
More details
Caratteristiche principali
- Qualità di grado industriale
- Conforme RoHS
- Certificato CE
- Garanzia di 1 anno
Dettagli tecnici
LED driver.
Documenti del prodotto
Scheda tecnica
Specifiche tecniche e dati di prestazione
Manuale utente
Guida di installazione e utilizzo
