EKD16125PE

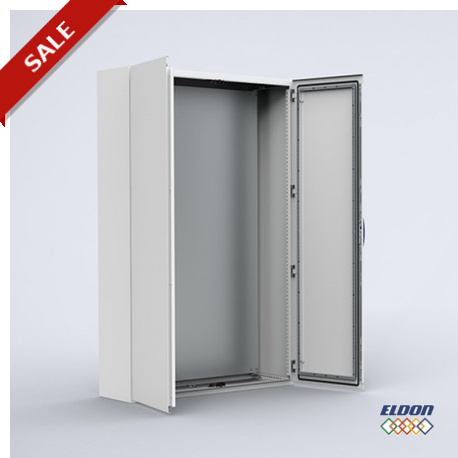

EKD16125PE ELDON Floor standing, 1600x1200x500
$0.00USD
4115 in magazzino
Specifiche chiave
Nota:Without mounting plate
Corpo::One piece enclosure body plus welded rear panel. Integrated depth profiles with hole pattern allowing mounting plate adjustment in depth.
Profondità:500 mm
Porta::Surface mounted with 4 hinges including door frame with 25 mm hole pattern and earthing studs. Standard doors can not be reversed.
Informazioni fornitore
ELDON
Prodotti: 4827
Di solito spedito entro 2-3 giorni lavorativi
Qualità garantita
Spedizione veloce
Supporto tecnico
Specifiche tecniche
| Parametro | Valore |
|---|---|
| Nota | Without mounting plate |
| Corpo: | One piece enclosure body plus welded rear panel. Integrated depth profiles with hole pattern allowing mounting plate adjustment in depth. |
| Profondità | 500 mm |
| Porta: | Surface mounted with 4 hinges including door frame with 25 mm hole pattern and earthing studs. Standard doors can not be reversed. |
| Serratura: | External espagnolette 4-point locking system. Standard fitted double-bit 3 mm insert. It can be exchanged for standard range of inserts, Euro-cylinder and swing handle. |
| Larghezza | 1200 mm |
| Altezza | 1600 mm |
| Peso | 107,3 Kg |
| Fine: | RAL 7035 structured powder coating. |
| Consegna: | One piece body with fitted doors, bottom plates and mounting plate, including door earthing studs. The enclosure is delivered on a pallet identical to the enclosure width. Mounting plate is supplied on the outside of the enclosure packaging. All the packaging material is recyclable. |
| Messa a terra: | Can be accomplished by using ECF (Earthing connections for frame). |
| Materiale: | Body and welded rear panel: 1.5 mm mild steel. Door: 2 mm mild steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel. |
| Protezione: | Complies with IP 55 TYPE 12, 13 IK 10. |
| Piastre inferiori: | Consists of two sets of two pieces or three (D>300) pieces. |
| Caratteristiche | |
| Piastra di montaggio: | Double folded and slides into position. Adjustable in depth by steps of 25 mm. Mounting plate is delivered attached on the outside of the enclosure packaging. Fitted inside for 1600 mm wide mounting plates. |
Descrizione del prodotto
More details
Caratteristiche principali
- Qualità di grado industriale
- Conforme RoHS
- Certificato CE
- Garanzia di 1 anno
Dettagli tecnici
As the double door version to EKS, the EKD offers the same improved design and strength as its smaller brother. With one piece body and welded rear panel ensures superior rigidity, and the front hole pattern guarantees the highest flexibility while maintaining IP 55 protection degree.
