D5C-1AP0

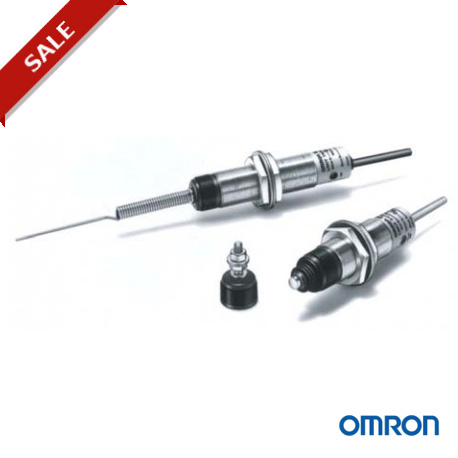

Touch SwitchD5CUnique 18 mm dia. Capacitive Touch Switch with Choice of Three Actuators is Activated with Only a Very Slight Physical Contact• Lightweight objects, such as thin wire or foil can be accurately detected.• Solid-state switch activates the moment its actuator comes in contact with the object.• Amplifier, operation indicator, and sensitivity adjuster are built- in on all models.• Conforms to IEC IP67 and NEMA Type 6, 6P.• Actuators can be freely interchanged between switch units.• A unique free-attachment version allows any kind of actuator antenna to be attached.Ordering Information■ List of ModelsFeatures Usable by bending tip of antenna.Overtravel of 20 mm max.Cable3 mIdeal for high-accuracy position con- trol.Overtravel of 3.5 mm max.Any actuator can be attached.ActuatorCoil springPlunger Free-attachmentPower source DCD5C-1DS0D5C-1DP0D5C-1DA0ACD5C-1AS0D5C-1AP0D5C-1AA0Antenna only D5C-00S0D5C-00P0D5C-00A0Specifications■ CharacteristicsModel DC AC D5C-1D@0D5C-1A@0Degree of protection Equivalent to IP67 (NEMA 6, 6P)DurabilityMechanical: 10,000,000 operations min. (at rated overtravel value)Supply voltage (operating voltage) 12 to 24 VDC (10 to 30 VDC), (ripple: 10% max.)100 to 240 VAC (45 to 264 VAC), 50/60 HzRated frequency--- 50/60 HzSensitivity setting range 30 to 100 pFCurrent consumption17 mA max. ---Leakage currentCircuit: --- Antenna: 1 mA max.Circuit: 2 mA max. Antenna:1 mA max.Response time 2 ms max.8 ms max.Output current 200 mA max. (resistive load)Insulation resistance50 MΩ min. (at 500 VDC) between lead wires and caseTouch Switch D5C 1
