AFP0HCCM1

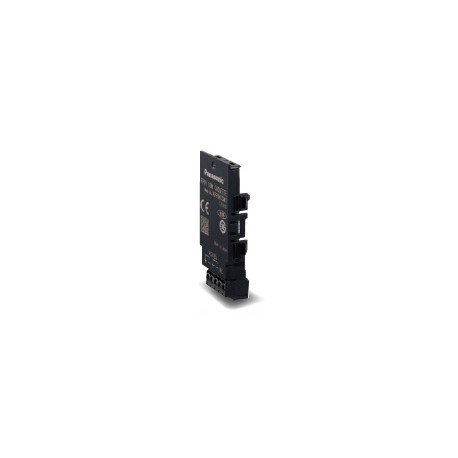

AFP0HCCM1 PANASONIC Communication cassette with 1 x RS485 (3 pin)
$0.00USD
3231 in magazzino
Specifiche chiave
Articolo:Specifications
Osservazione:Notes:1) The start and end codes can be used only for general-purpose serial communications.2) The unit No. (station number) can be selected at system register.3) Sufficient noise tolerance is provided but it is recommended that a user program be created for retransmission. (To improve the reliability of communications when a communication error occurs due to an excessive noise or when the target device cannot receive data temporarily.)4) When connecting a commercially available device that has an RS-485 interface, please confirm operation using the actual device. In some cases, the number of station units, transmission distance and communication speed vary depending on the connected device.5) The transmission distance, transmission speed, and number of stations should be within the range of the graph below, depending on each value.When the transmission speed is 19,200 bits/s, you can set up to 99 stations and up to 1,200 m3,937.008 fttransmission distance.
Interfaccia:RS-485 1 channel
Peso netto:10 g approx.
Informazioni fornitore
PANASONIC
Prodotti: 4316
Di solito spedito entro 2-3 giorni lavorativi
Qualità garantita
Spedizione veloce
Supporto tecnico
Specifiche tecniche
| Parametro | Valore |
|---|---|
| Articolo | Specifications |
| Osservazione | Notes:1) The start and end codes can be used only for general-purpose serial communications.2) The unit No. (station number) can be selected at system register.3) Sufficient noise tolerance is provided but it is recommended that a user program be created for retransmission. (To improve the reliability of communications when a communication error occurs due to an excessive noise or when the target device cannot receive data temporarily.)4) When connecting a commercially available device that has an RS-485 interface, please confirm operation using the actual device. In some cases, the number of station units, transmission distance and communication speed vary depending on the connected device.5) The transmission distance, transmission speed, and number of stations should be within the range of the graph below, depending on each value.When the transmission speed is 19,200 bits/s, you can set up to 99 stations and up to 1,200 m3,937.008 fttransmission distance. |
| Interfaccia | RS-485 1 channel |
| Peso netto | 10 g approx. |
| Numero di parte | AFP0HCCM1 |
| Nome del prodotto | FP0H communication cassettes |
| Numero di prodotto | AFP0HCCM1 |
| Numero di stazioni | Max. 99 units |
| Metodo sincrono | Start-stop synchronization system |
| Velocità di comunicazione | 1,200(Note), 2,400(Note), 4,800, 9,600, 19,200, 38,400, 57,600, 115,200, 230,400 bits/sec.(Note): System register no. 415 cannot be used to set the baud rate to 1,200 bps. To set the baud rate to 1,200 bps, use the SYS1 instruction. If the baud rate of any of the COM ports is 2,400 bps or lower, F-ROM access will slow down.Example) F12(ICRD) instruction, P13(ICWT) instruction, etc. |
| Metodo di comunicazione | Half-duplex system |
| Distanza di trasmissione | Max. 1,200 m3,937.008 ft |
| Ordine di trasmissione dei dati | Transmit from bit 0 in character units. |
| Configurazione della comunicazione | 1 : N communication |
| Formato di trasmissione: Parità | none / odd / even |
| Formato di trasmissione: Codice finale | CR / CR + LF / none / ETX / Time (0 to 100 ms) |
| Formato di trasmissione: bit di stop | 1 bit / 2 bits |
| Formato di trasmissione: Codice di inizio | with STX / without STX |
| Formato di trasmissione: lunghezza dei dati | 7 bits / 8 bits |
Descrizione del prodotto
FP0H Communication Cassette. 1 Port R485
Caratteristiche principali
- Qualità di grado industriale
- Conforme RoHS
- Certificato CE
- Garanzia di 1 anno
